Makerfire 5.8Ghz Mini FPV Goggles 3 inch 40CH FPV Video Headset Glasses with Double RP-SMA Antenna and Handbag Built-in 1200mAh Battery for FPV Racing Drone Quadcopters

Feature

Low power consumption, Working current 300~330mA;

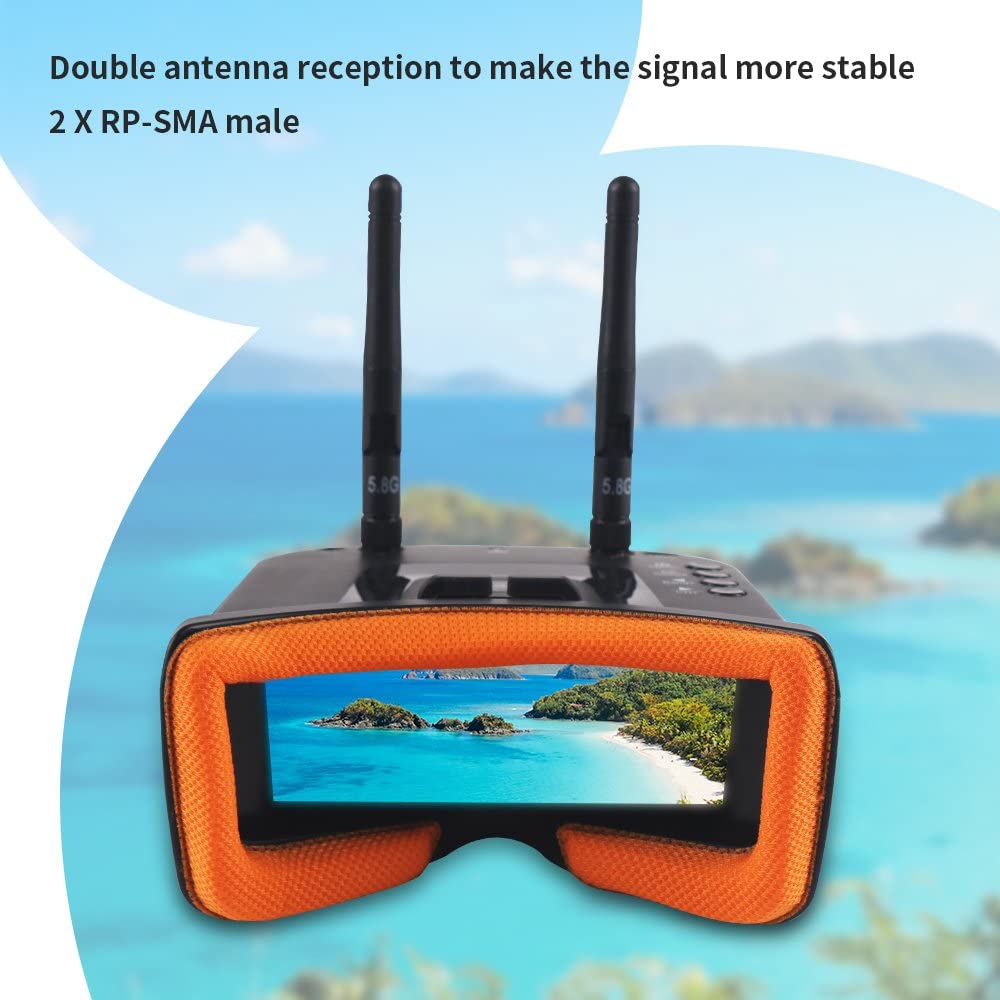

Double antenna reception to make the signal more stable;

RaceBand 40 channel, Auto-Searching; 3.0 Inch 480*320 dot high brightness LCD screen;

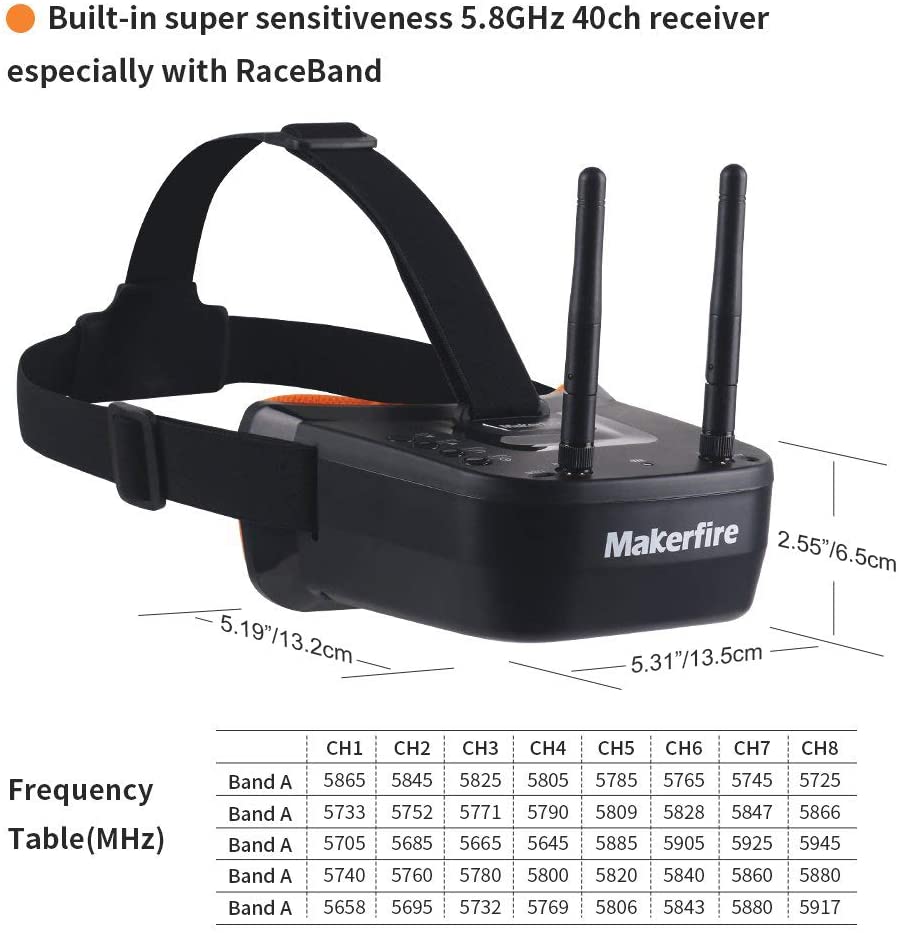

Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

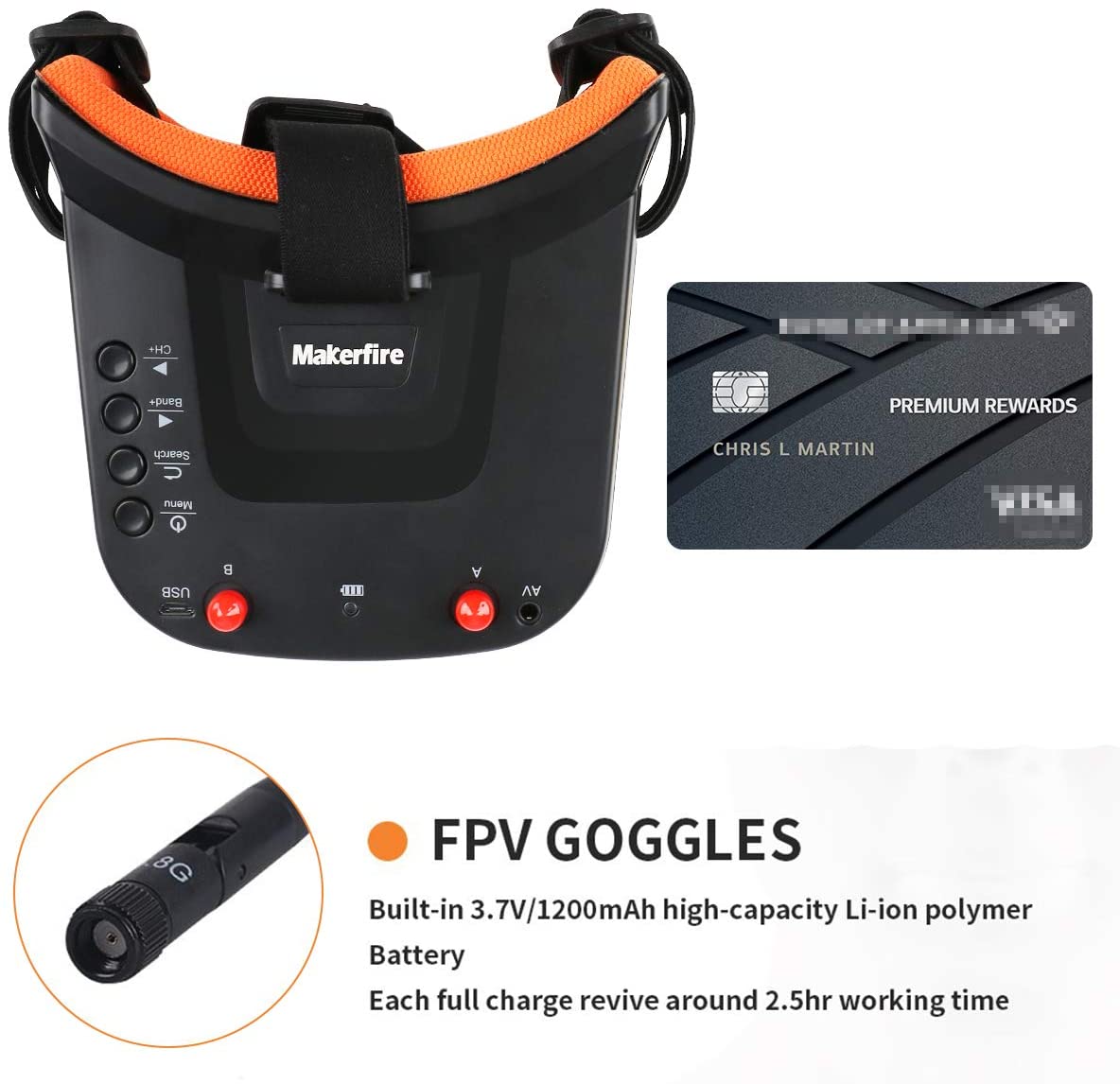

Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;

Universal USB charging interface;

Real-time video return, Very low time-delay;

LCD Screen

LCD Screen

Screen size: 3.0 Inch

Resolution: 480*320

Display Ratio: 16:9

ViewAngle: 6 o'clock

Brightness: 350cd/m² with high brightness backlight LED

Dimension

Dimension: 13.5cm * 13.2cm * 6.5cm

Weight: 180g(with headband, not included antennas)

Power Supply

Power adapter: DC5V/1A (USB interface)

Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time

Power Consumption:

*The device operating current of 300~330mA at 3.7~4.2V;

*Built-in battery maximum charge current of 500mA;

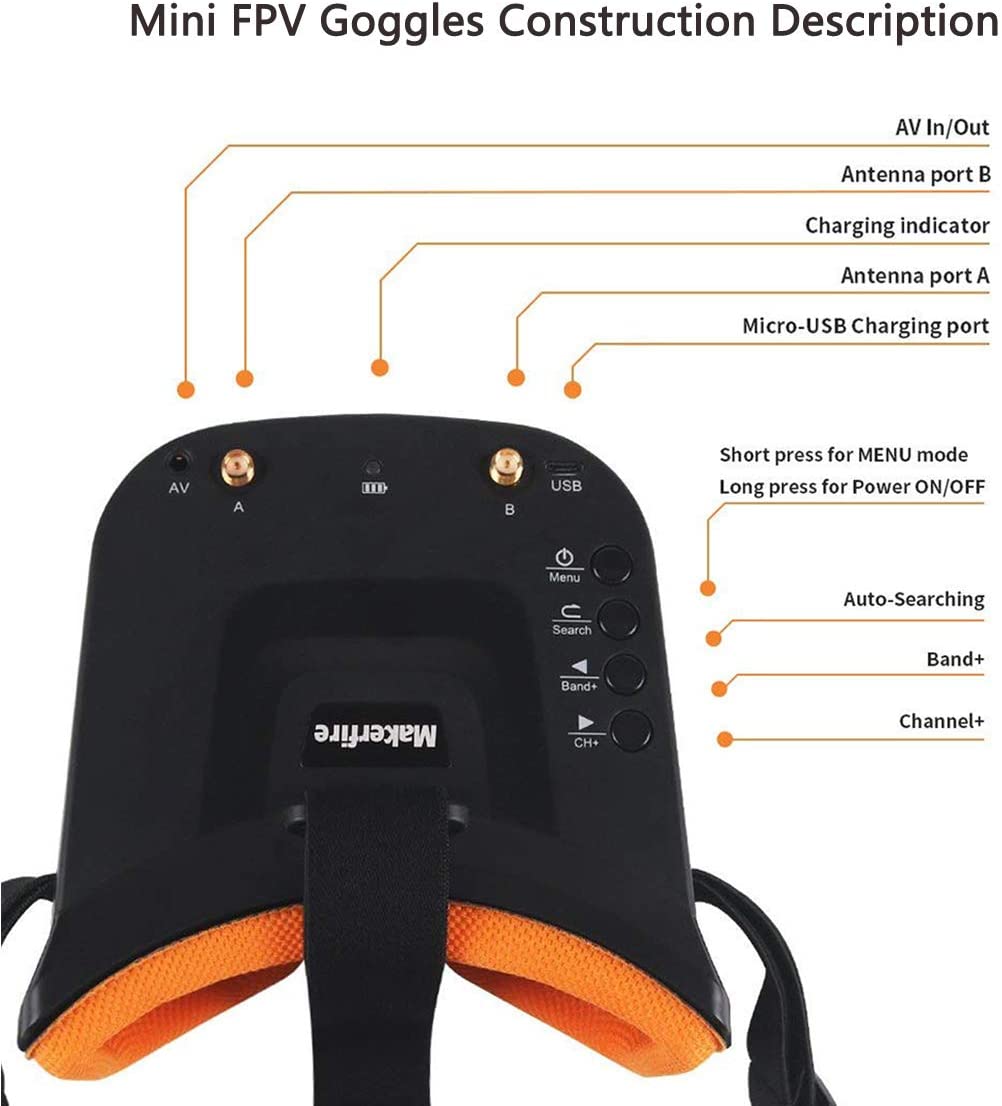

Interface

Antenna:2 X RP-SMA male

USB:To charge the battery

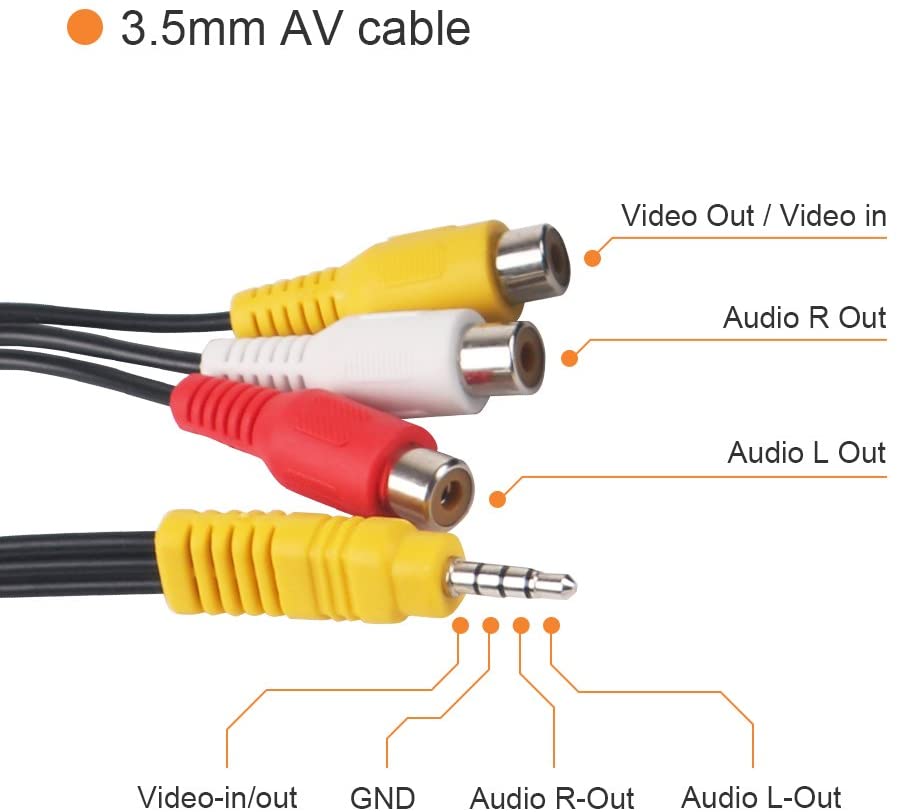

AV Jack :External video signals input or internals AV signal output

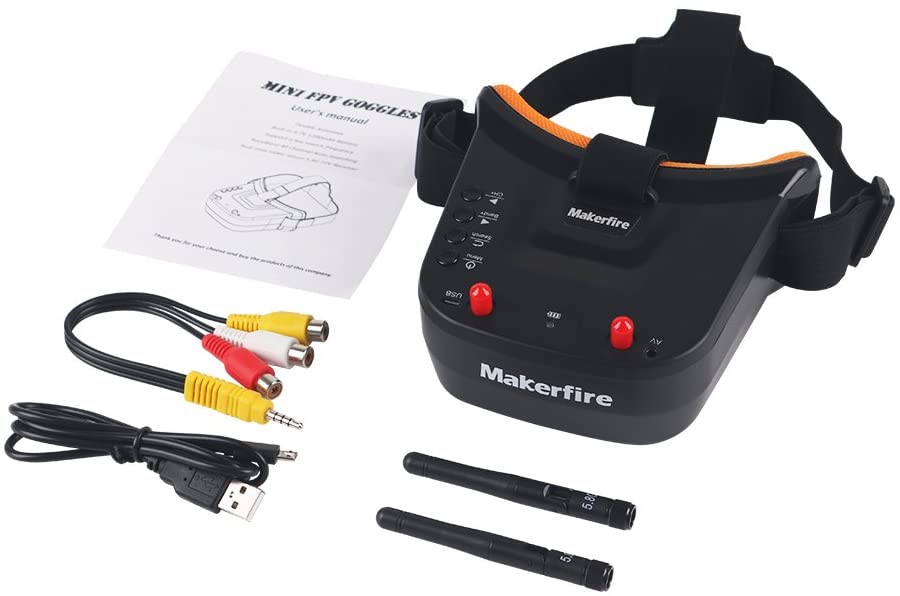

Packing list

1 * Mini FPV Goggle

2 * RP-SMA Antenna

1 * Goggle USB Cable

1 * Audio Cable

1 * Manual

2 * Red Silicone Caps

1 * Handbag
