Product Description

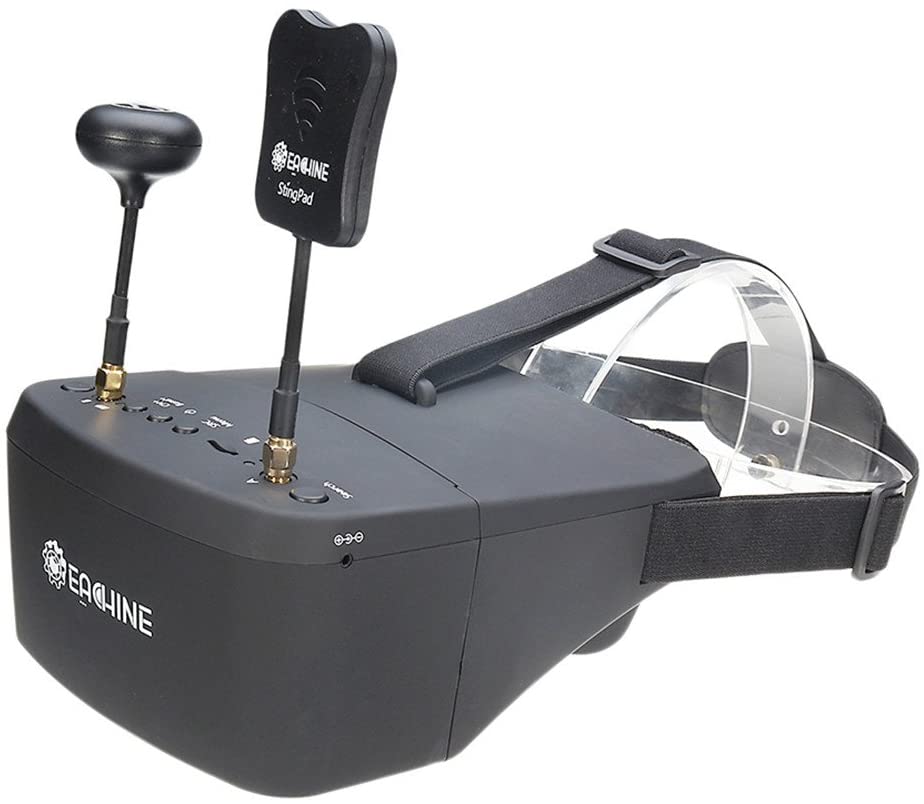

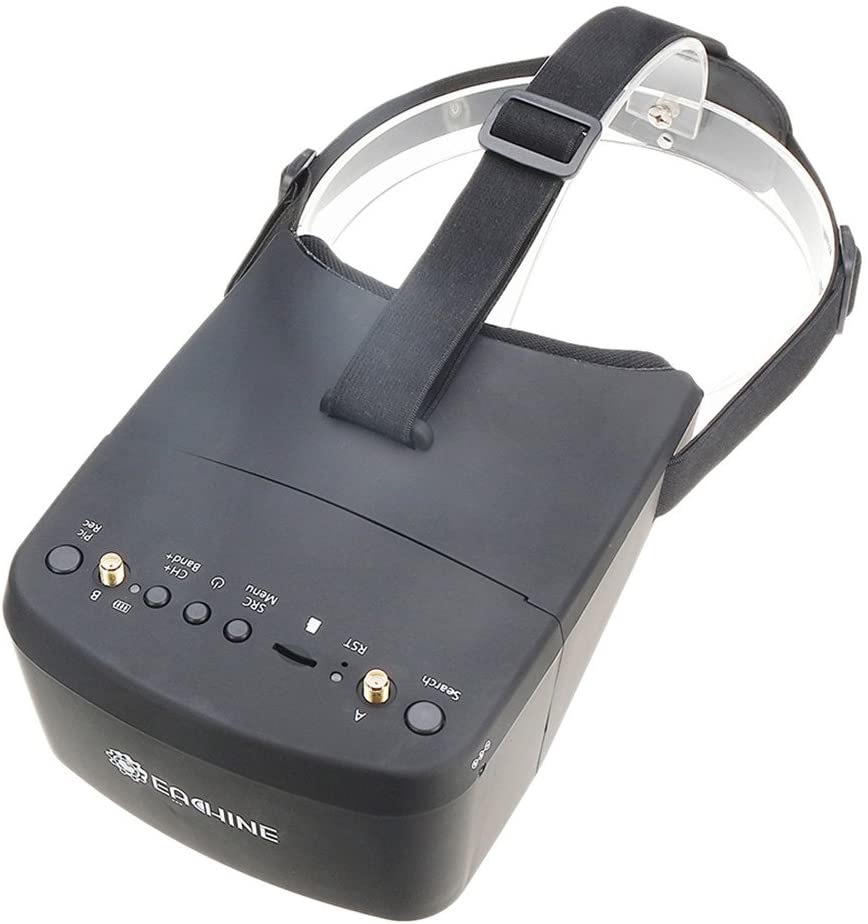

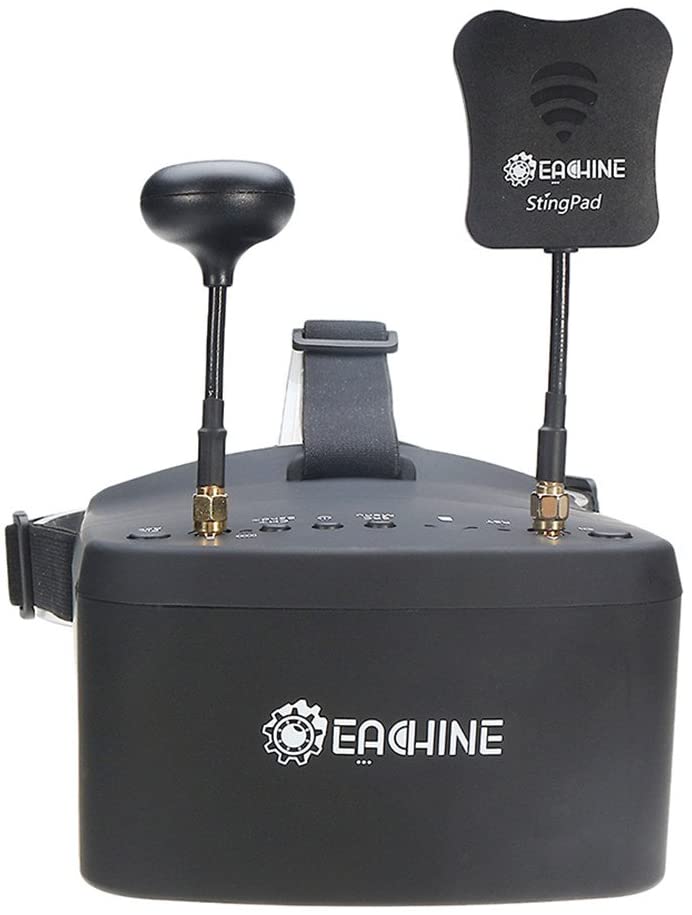

EACHINE EV800D FPV Goggles 5 Inch 800x480 Video Glasses Headset w/ HD DVR 5.8G 40CH Auto-Searching Diversity Receiver Build in Battery
Description :
Brand Name : EACHINE
Item Name : EV800D
Dimension: 180*145*82mm
Weight: 362g without antenna
Belt : three-way adjustable belt
Screen size: 5.0 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio : 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)
Battery:
Built-in 7.4V/1200mAh battery;
Each battery circle offer around 2hr working time;
10-22V wide range recharging voltage range, typical recharging voltage is 12V
Charger : 12V,2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.
Features:
Diversity RaceBand 40ch Auto-Searching
Work friendly with pilot-OSD, no block on the important flying OSD information;
HD high brightness 5 inch LCD specially tuned for FPV racing;
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;
Advanced auto-searching function and the working frequency show on screen;
Wide range re-charge voltage 11-20V;
Accept 2S or 3S batteries as back-up power source, to prolong the working time;
Nice ergonomic design and fit different faces;
Super-wide visible angle up to 82 degree;
92% transparent lens adopted, no distort, no blur on the edge of screen;
Light weight 375g with 3.5 hr 2000mAh battery, RTF for any scale racing game;
5 Inch 800*480px HD high brightness LCD

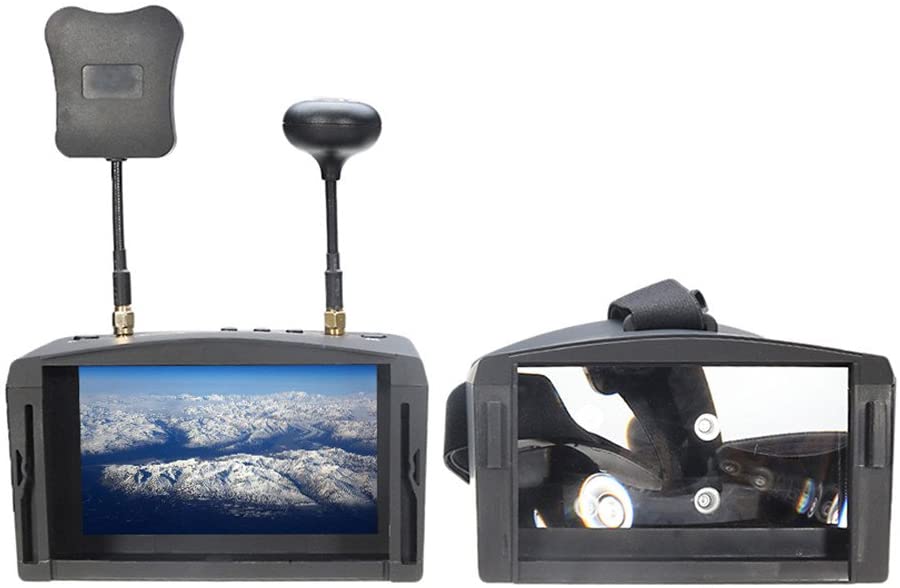

Used As Small Monitor
Separable Design: 5 inch screen can be used as small monitor on radio controller or with tripod

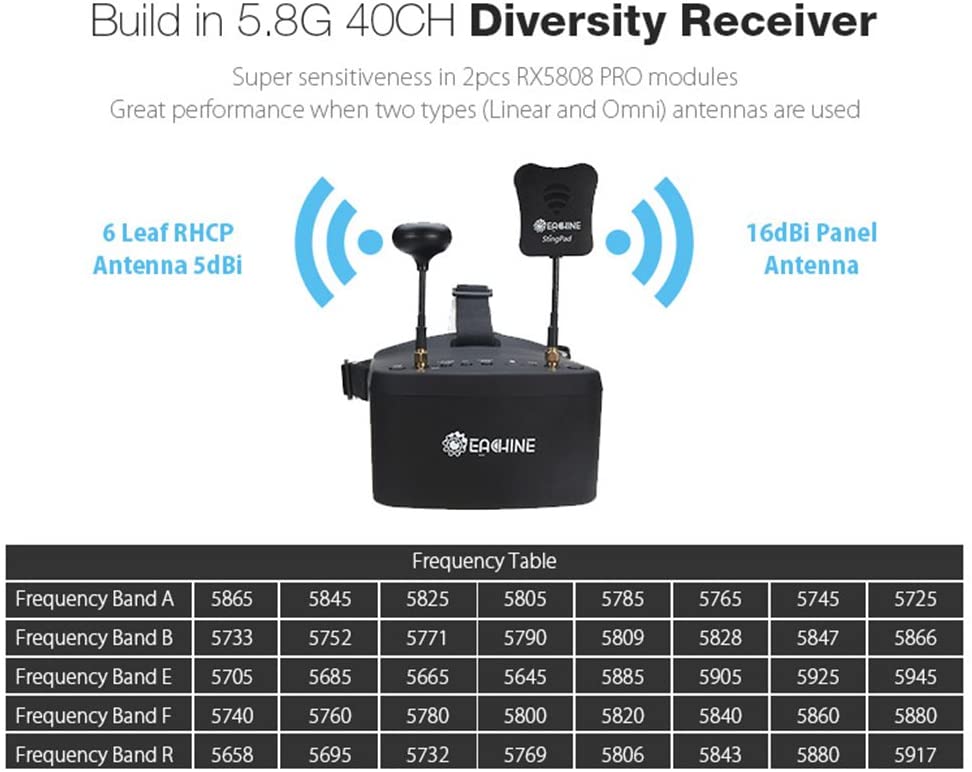

Build In 5.8G 40CH Diversity Receiver
Build In 5.8G 40CH Diversity Receiver: Super sensitiveness in 2pcs RX5808 PRO modules, great performance when two types (Linear and Omni) antennas are used.
More Details
Build In DVR: Record up to HD 720*576px full frame rate video, no frame lost (C10 card required), replay in menu.
Menu Setting: 4:3/16:9 switchable;

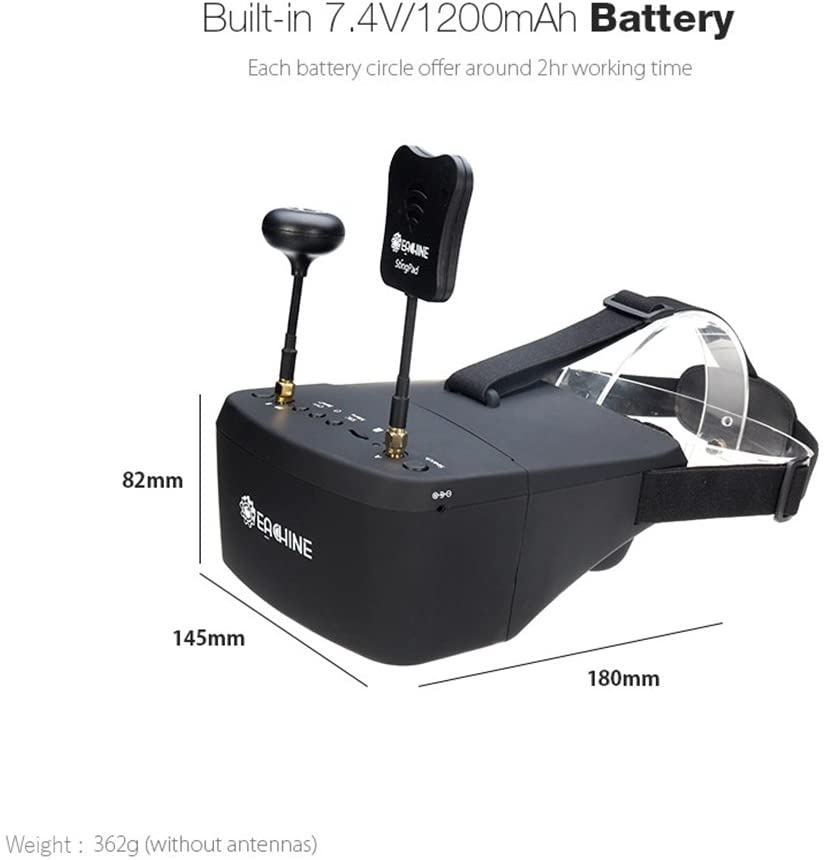

Built-in 7.4V/1200mAh Battery: Each battery circle offer around 2hrs working time.

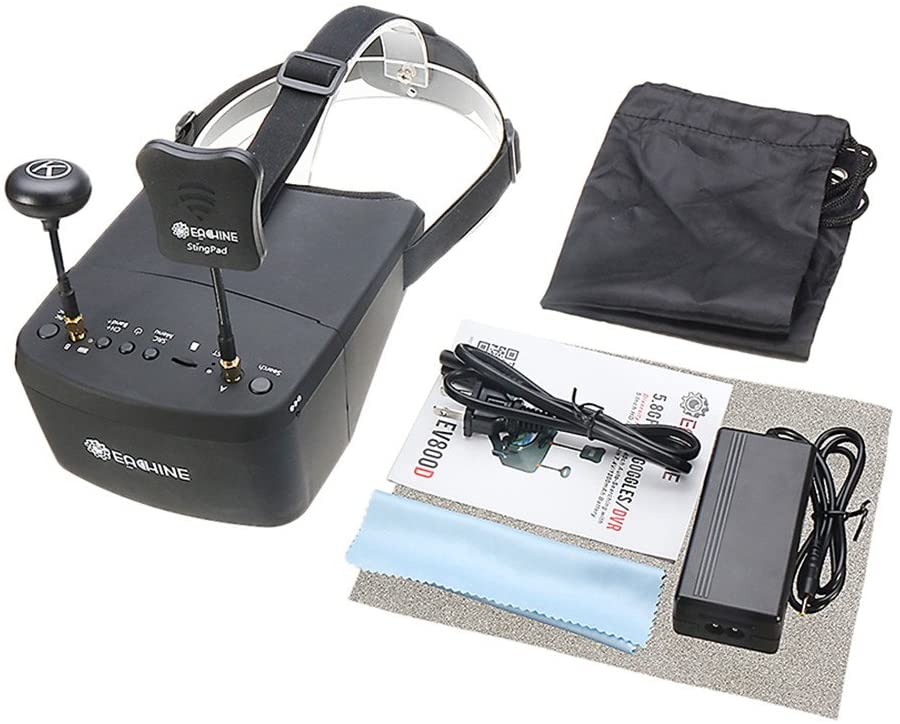

Package Included :
1 x EV800D 40CH 5.8G Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x 3S to DC Power Cable
1 x User Manual
1 x Clean cloth
1 x Bag
